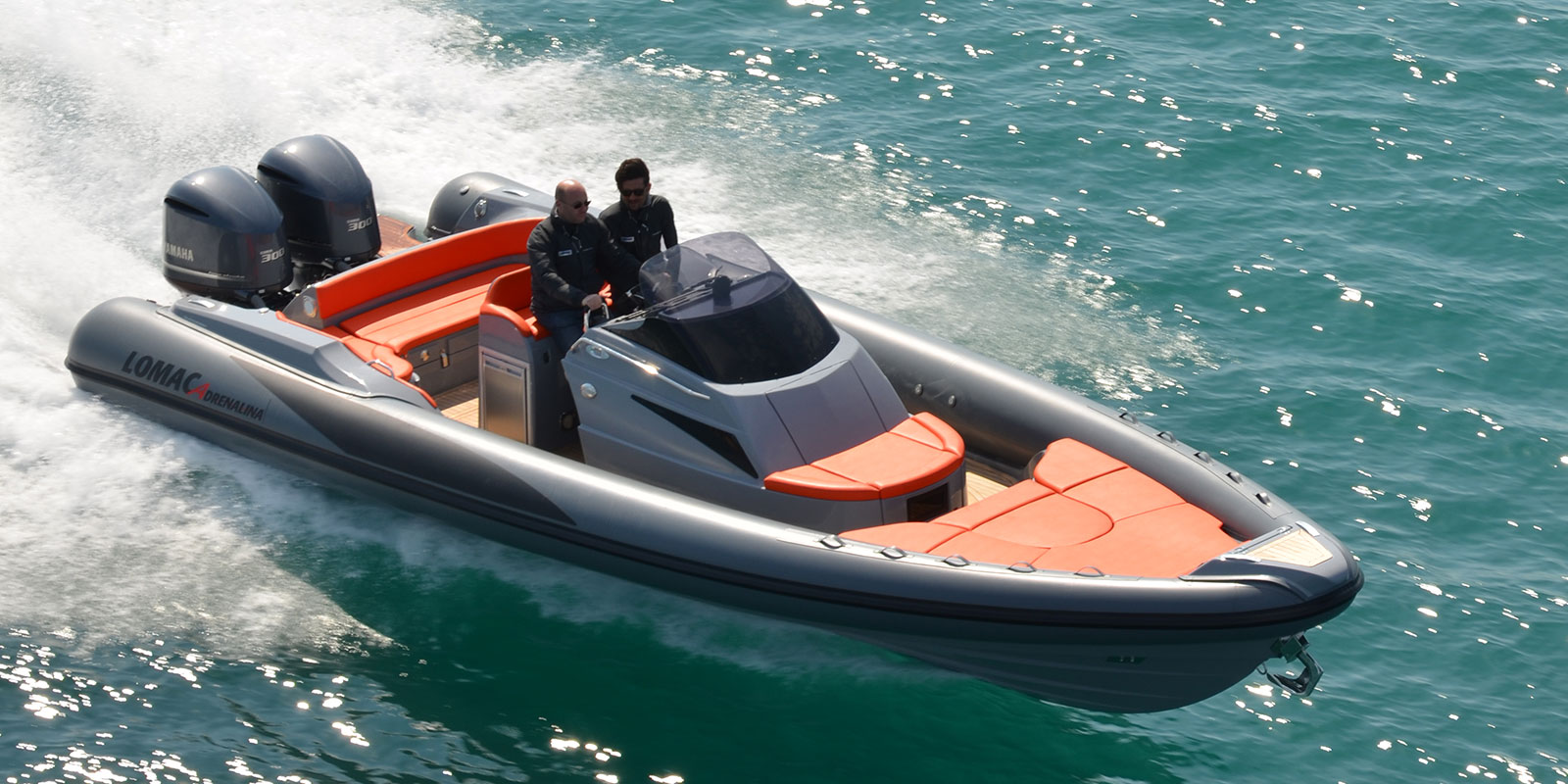

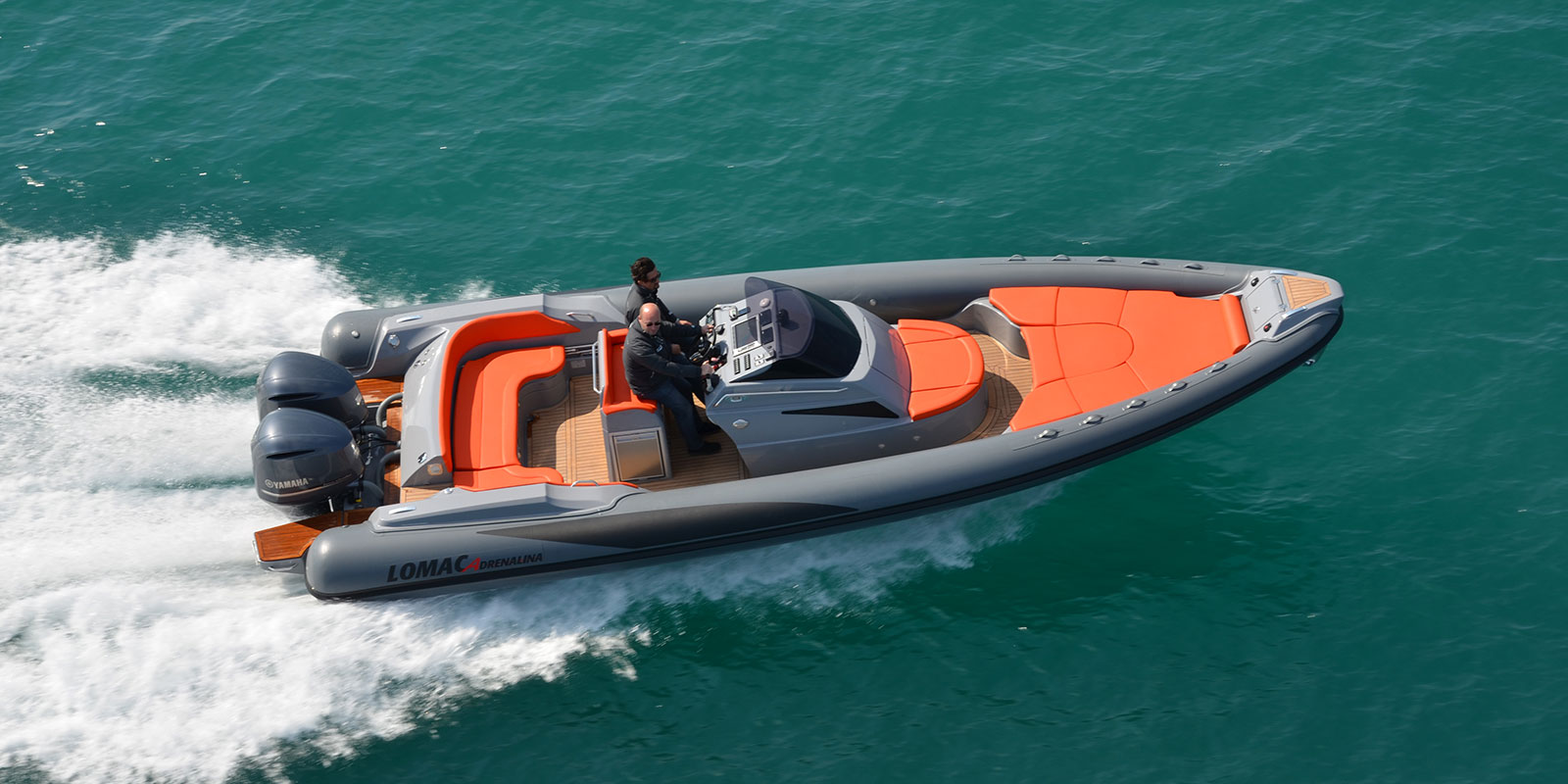

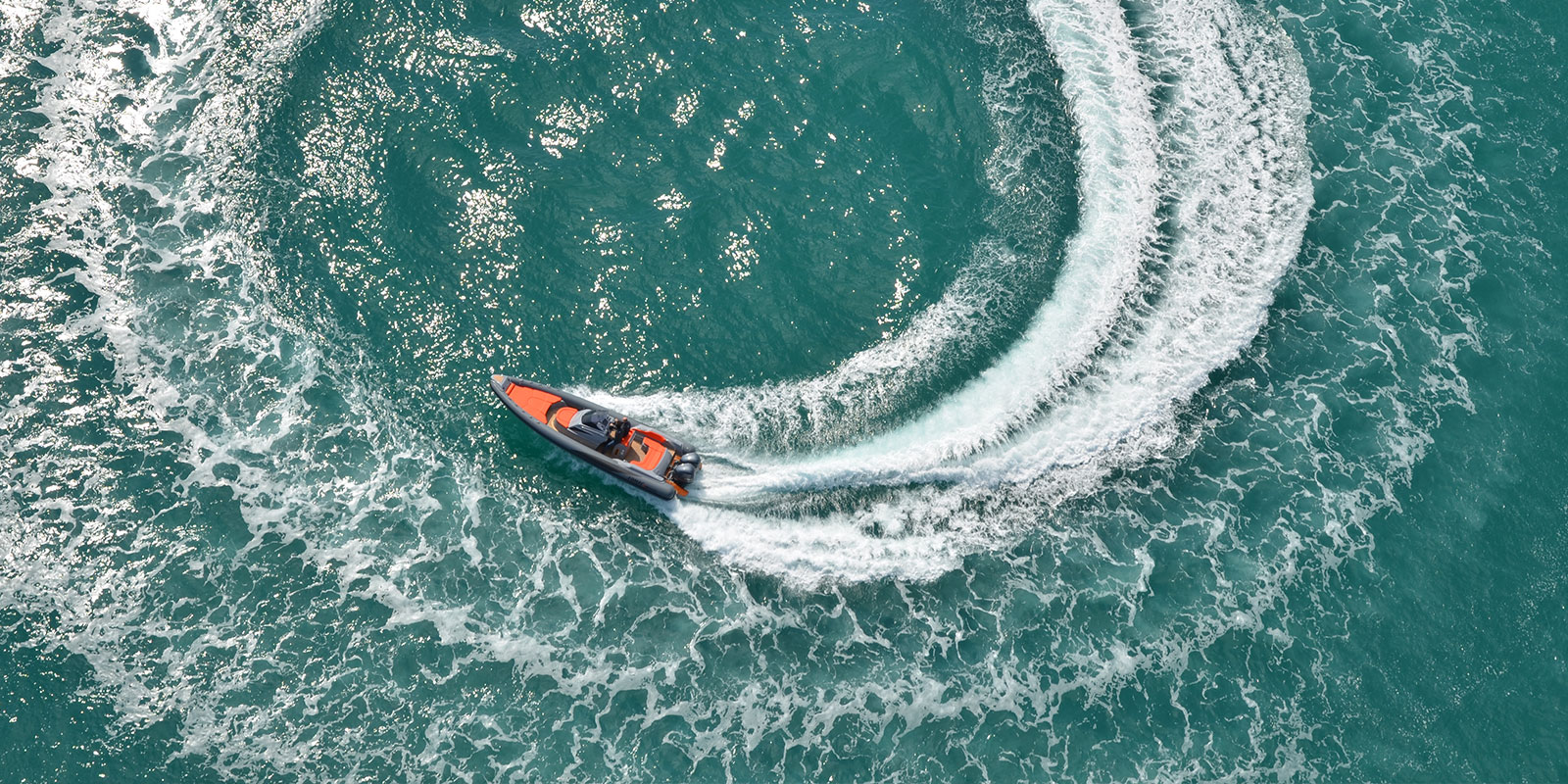

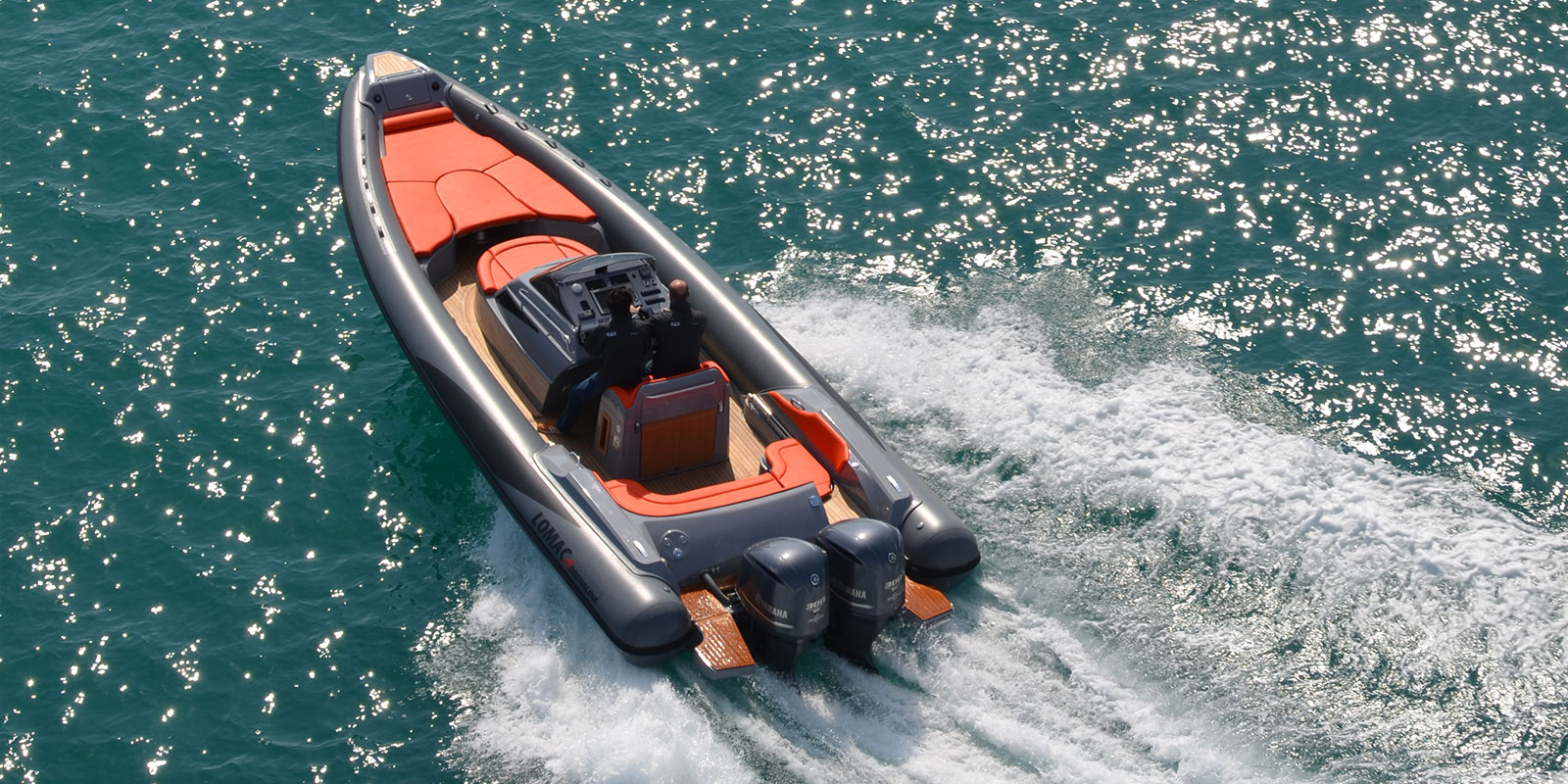

MODEL ADRENALINA 9.5
DESCRIPTION
TECHNICAL DATA
| Overall lenght (m.) | 8,97 - 9,45 |
| Overall width (m.) | 3,58 |
| Inside size (cm.) | 715x216 |
| Weight (kg.) | 2300 |
| Tubes | classic style |
| N° of air chambers | 6 |
| Diameter of tubes (cm.) | 67 |
| Working press bar (atm) | 0,20 |
| Hull | twinshell |
| Person capacity | 20 |
| Testing power max (Hp.) | 2x300 |
| Suggested power (Hp.) | 2x250 |
| Transom height (mm.) | 2x635 |
| Type approval design category | B |
LOMAC advise that for the figures relative to weights and measures there could be a variation of ±3%. LOMAC reserves the right to change the characteristics of the models without notice. |
STANDARD EQUIPMENT
- steering console, windshield and handrails, sliding cabin door with lock, front window, navigation lights
- reinforced hydraulic steering system with 2 cylinder, inox wheel with hand-sewn sky, compass and horn
- instrument panel integrated, electric panel 14 functions, external 12 volts socket
- cabin with 2 beds, mirrors and oak furniture, shower with tank of 80l, chemical WC, internal 12 volts socket
- courtesy light in the cabin, platform, steps and both stern and bow compartment
- electric windlass with double control on console and bow, inox anchor 9.5 kg. and 50 mt. chain
- shower in the back with water tank 80 lt with autoclave pump and level control
- bow gear, stern platforms, side passage and steps in teak
- inox fuel tank lt. 560 installed with feeler
- bow sundeck with extionsion and bow table
- parasol awning bimini with assistance through pneumatic cylinders
- complete upholstery bow and stern, bow and stern sundeck
- couple transom platform with inox ladder
- pilot seat double cushion, with refrigerator lt 49 integrated and foldable table
- couple transom platforms with teak and inox ladder,
- 3 inox rings, 4 aluminium cleat 4 davits for lifting complete with belts
- oars or paddle, manual inflation pump, repair kit, electric inflation pump and manometer
ACCESSORIES
- sea electric WC in oak furniture, complete with black water turbine pump with tank 56 lt. carbon filter, and level indicator probe
- cockpit in teak wood
- steel bow handle to go back
- charger 25 A, plug and cable 10 meters for dockside for 3 batteries
- electric table with control in the console
- transport cover
- mooring cover
- console cover
- seat cover
- stainless stink in driving seat
- installation of 3 batteries switches and automatic charging split
- inox fuel tank 700 lt for difference
- VHF GARMIN 115i with antenna
- radio FM-AM Fusion MS RA 70N with Bluetooth, 4 speakers 200 Watts and antenna
- radio FM-AM Fusion MS RA 770 Apollo 4 speakers 260 Watts and antenna
- radio FM-AM Fusion MS RA 770 Apollo 4 speakers 260 Watts + 2 Tweeter +amplifier 1.600 Watts and antenna
- DAB
- GARMIN GPSMAP 8410 xsv worldwide + fishfinder and sonda, with NMEA
- GARMIN GPSMAP 8410 xsv worldwide + fishfinder and sonda, without NMEA
- GPSMAP GARMIN 1222xsvdisplay 12"color Touchscreen + fishfinder + transducers without NMEA
- GPSMAP GARMIN 1222xsvdisplay 12"color Touchscreen + fishfinder + transducers wit NMEA
- GARMIN Camera for bow chain storage on GPS dispaly
- chain counter instrument
- bow propeller
- towing rod
- plate bow double towing
- color gelcoat for consolle and driving seat on white floor
- underwater light bicolor white and blue
- bow depth beacon
